BC-48150A
BENERGY

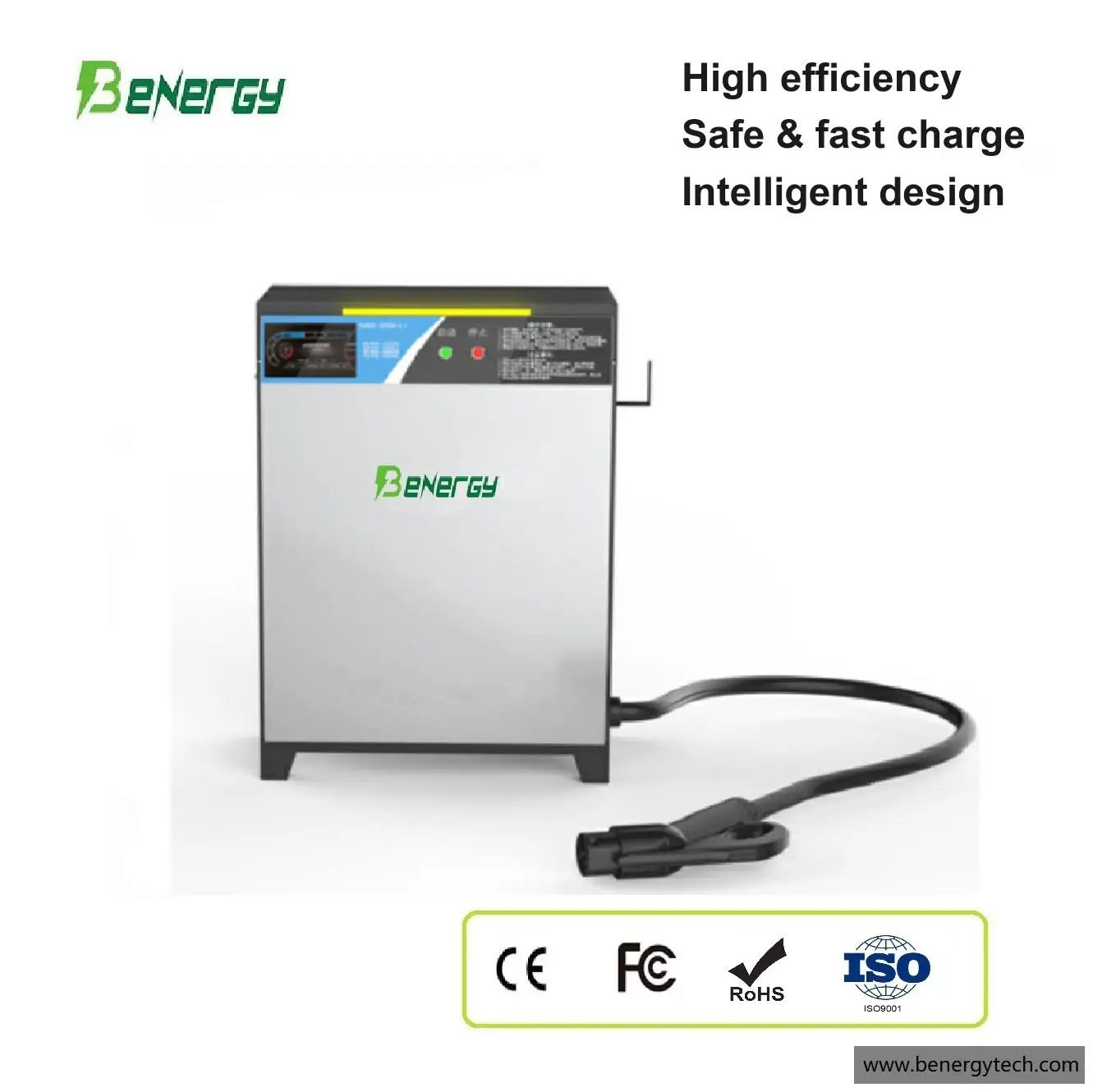

Benergy Charger is specially designed for Lithium Ion Battery pack. The working mode of our charger is CC/CV (constant current/constant voltage) mode.
Charger Model | BAP48100A | BAP48V150A | BAP48V200A | BAP48V300A | BAP48V400A |
Rated input voltage | 380V | 380V | 380V | 380V | 380V |
Rated frequency | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
Input power | ≤5.4KW | ≤9KW | ≤11.5KW | ≤17KW | ≤21.4KW |
Conversion efficiency | ≥90% | ≥90% | ≥90% | ≥90% | ≥90% |
IP range | ≥IP23 | ≥IP23 | ≥IP23 | ≥IP23 | ≥IP23 |
Rated output voltage | 48V | 48V | 48V | 48V | 48V |
Output current | 100A | 150A | 200A | 300A | 400A |
Rated output power | 4.8KW | 7.2KW | 9.6KW | 14.4KW | 19.2KW |
DC output | DC 42V~DC 58V | DC 42V~DC 58V | DC 42V~DC 58V | DC 42V~DC 58V | DC 42V~DC 58V |
Cooling method | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling | Forced air cooling |
Operation temperature | -20℃~40℃ | -20℃~40℃ | -20℃~40℃ | -20℃~40℃ | -20℃~40℃ |
Working humidity | 0%~93% | 0%~93% | 0%~93% | 0%~93% | 0%~93% |
Noise | <70dB | <70dB | <70dB | <70dB | <70dB |
Altitude | Below 2000m | Below 2000m | Below 2000m | Below 2000m | Below 2000m |
Benergy charger use a new high-efficiency three-phase APFC circuit topology structure. Power factor greater than 0.99. The high-frequency switching power supply adopts full bridge phase-shifting soft switching technology. And with advanced digital current sharing technology, effectively improving current sharing accuracy and anti-interference, easy operation, real-time display of charged amount, charging voltage, charging current and other information and operating status, and can reserve RS-484 network communication interface.
* Fully automatic charging function: controlled by a microcomputer throughout the entire process, the charging mode can be adjusted at any time
* Touch screen display function: Real time display of charging status, clear charging process at a glance
* Temperature control function: Real time monitoring of the entire machine and module temperature, with comprehensive temperature control function
* Soft start function: Input pre charging and input soft start can effectively prevent input overcurrent and extend the service life of the entire machine
Detail size:
Input connector (selectable):
Output connector (selectable):
Packages:
Applications
Our chargers are widely used for electric vehicles, forklift, marine, boat etc.
