48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 1

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 2

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 3

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 4

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 5

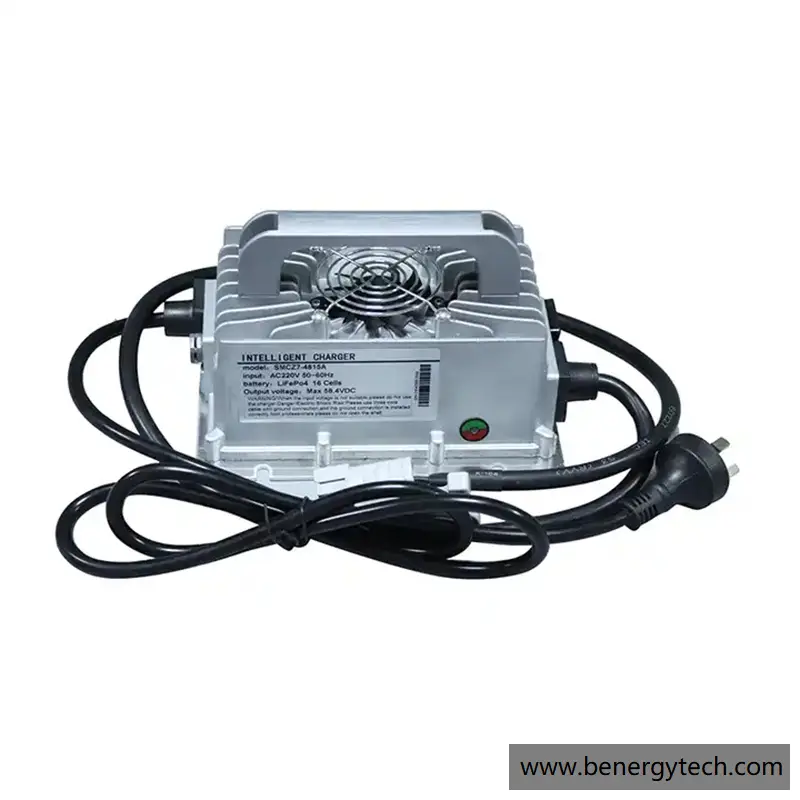

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes

Name: 48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes
Uploaded: 2024-07-10T16:55:49+08:00
Description: 48V 35A

Features:

Benergy Chargers are specially designed for various batteries, like for golf cart, Tuk tuk, electric scooter, electric motorcycle, AGV etc.

1. Overheat protection. Temperature exceeds 80°C, charging current will reduce automatically and shut down when temperature reaches 85°C.

2. Short circuit protection.

3. Battery reverse connection protection.

4. Input low-voltage & Over-voltage Protection.

5. Full automatic shutdown after fully charged.

Model:

BC20-4835

Max Charge Current:

58.4V

Max Continuous Discharge Current:

35A

Size:

282*168*90mm (W,L,H)

Size in inch:

11.1×6.61×3.54 inch (W,L,H)

Weight:

3.8KG±0.1Kg

Weight in pound:

8.38 lb

IP range:

IP67

Function:

Indicator, CAN BUS, IP67

HS Code:

8504401990

Brand:

BENERGY

Inquiry

Write a Review

Specification

Product Type	Lithium Iron Phosphate Battery Charger
Brand Name	Benergy
Model No.	BC20-4835A
For Battery Pack	48V (16S) Lifepo4 Battery Packs
Charge Voltage	58.4V
Charge current	35A
Size	28216896(mm) (L,W, H) 11.1×6.61×3.54"
Weight	3800g±50g 8.38 lbs
Charge Mode	CC/CV (Continuous current/Continuous Voltage)
Warranty	1 Year
OEM/ODM	Yes(Accepted)
IP range	IP67
Maximum Output Power	2000W
Protection	Short Circuit Protection, ovp, Low Tension, Over-charging, Overcurrent, Overvoltage, Overheat Protection, Battery Reverse Connection Protection
Input voltage and current	AC90-264V, 3-5A
Power factor	≥0.98
Efficiency	≥93%
Input frequency range	40~70Hz
Operating temperature	-30℃~+50℃
Storage temperature	-55℃~+100℃
Battery type	Lithium Ion, LifePO4, Lead-acid battery
Noise	≤45dB
Material	Aluminium alloy shell
LED light Indicator	Standard

Detail size

图片1 (20)

Input connector (selectable)

Output connector (selectable)

Other 2000W chargers for your selection

Specifications and Models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
BC20-2445A	AC90- -264V	24V	33.0V	45A
BC20-3635A	AC90- -264V	36V	49.5V	35A
BC20-4835A	AC90- -264V	48V	66.0V	35A
BC20-6030A	AC90- -264V	60V	82.5V	30A
BC20-7225A	AC90- -264V	72V	99.0V	25A
BC20-8022A	AC90- -264V	80V	110V	22A
BC20-8418A	AC90- -264V	84V	115.5	18A
BC20-9618A	AC90- -264V	96V	120	18A

Product Advantages

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 9

Long cycle life

Fully automatic charging function: controlled by a microcomputer throughout the entire process, the charging mode can be adjusted at any time.

48V 35A Fast Charger: Industrial-Grade Lithium Ion Charger for Forklifts, Golf Carts & E-Bikes 10

Compact in size and light in weight

Touch screen display function: Real time display of charging status, clear charging process at a glance.

High safety

Temperature control function: Real time monitoring of the entire machine and module temperature, with comprehensive temperature control function.

Good charging and discharging performance

Soft start function: Input pre charging and input soft start can effectively prevent input overcurrent and extend the service life of the entire machine.

Applications

Benergy chargers can be widely use for various batteries, like Golf cart battery, forklift battery, electric bicycle battery etc.

Packages

Certifications

Benergy has got CE, ROHS, CB, ISO9001, IEC62133 certifcations.

MSDS

IEC 62133

ISO 2023

Quality

UN38

ROHS

China Classification Society

IEC62619_01

EU Brand

DGM transport

CE Certificate

UN38

UL 9540A

Sea Transportation 100Ah

FAQ

What will be the lead time if I place the order?

It depends order quantities. Usually, we can deliver goods within 10 working days for small orders, for more QTY. Order, let's confirm when you place official order.

Can I use the charger for lead acid/Li-NCM battery?

Our charger can be used for lead acid batteries, but please let us know before place the order and we will adjust based on your requirement.

Are your factory or trading company?

We are processional Lifepo4 cells and battery products manufacturer with our own factory and brand BENERGY. We provide all kinds of OEM/ODM services for clients around globe.

What is your warranty?

We offer 1 year warranty for all our lithium ion battery chargers.
